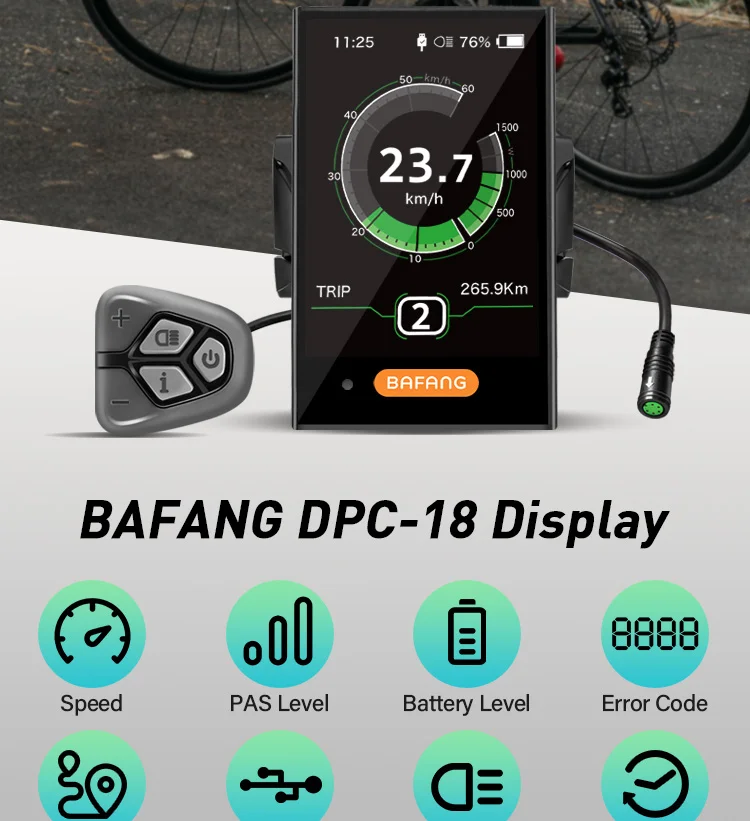

Bike Display Features

• Compatible with 36V / 43V / 48V power systems

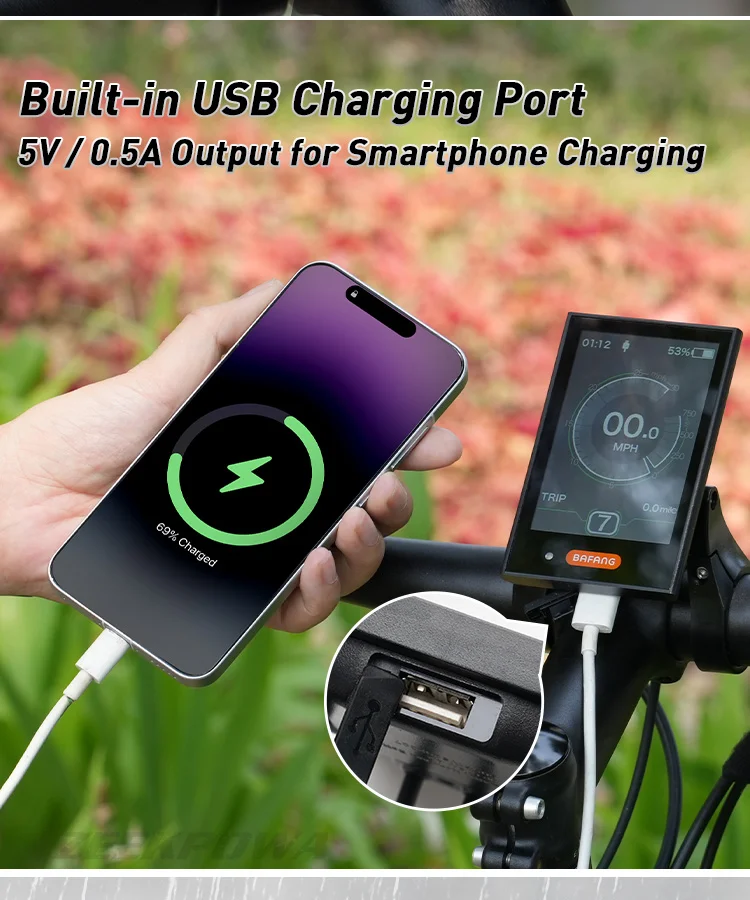

• Built-in USB charging port provides 5V/0.5A output for mobile device charging

• Real-time battery level indicator for precise monitoring

• Waterproof color LCD screen displaying comprehensive riding information

• Displays average speed, maximum speed, and current speed in real time

• Shows total distance (ODO), ride time, current speed, and pedal assist level (PAS)

• Certified with CE and RoHS standards for safety and environmental compliance

Important Notes

• This electric bike display is compatible only with BAFANG motors using the UART communication protocol

• Hot plugging is not supported — do not connect or disconnect the display while the system is powered on

• Do not attempt to reset internal parameters if the display becomes unresponsive

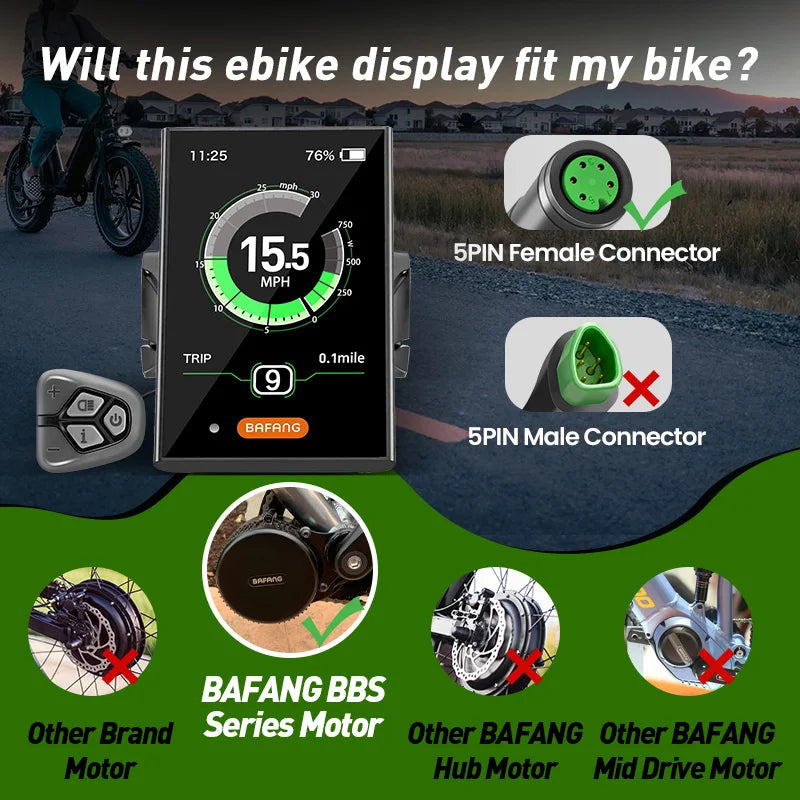

Product Compatibility

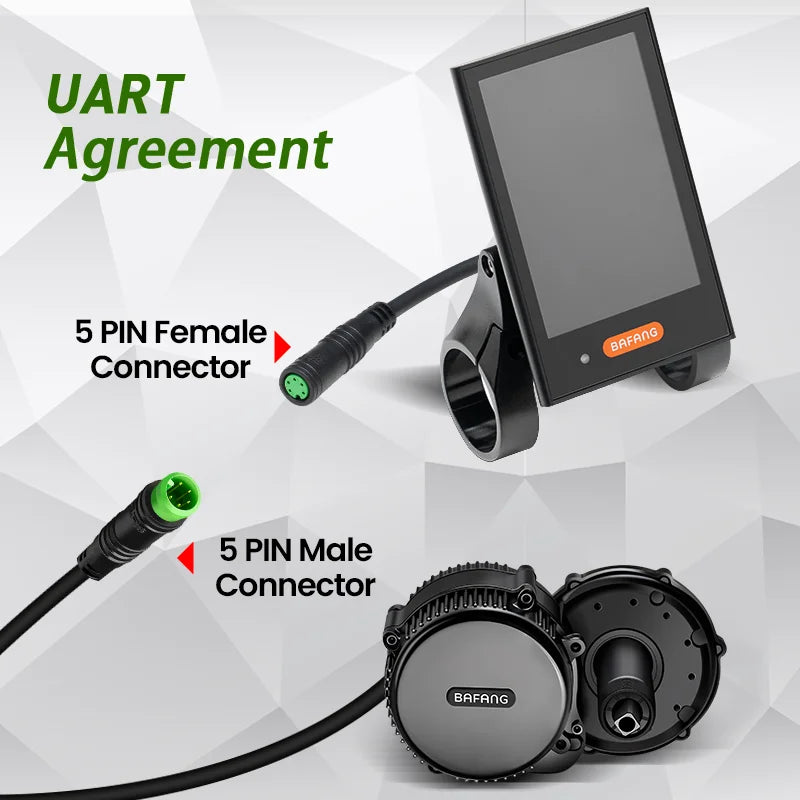

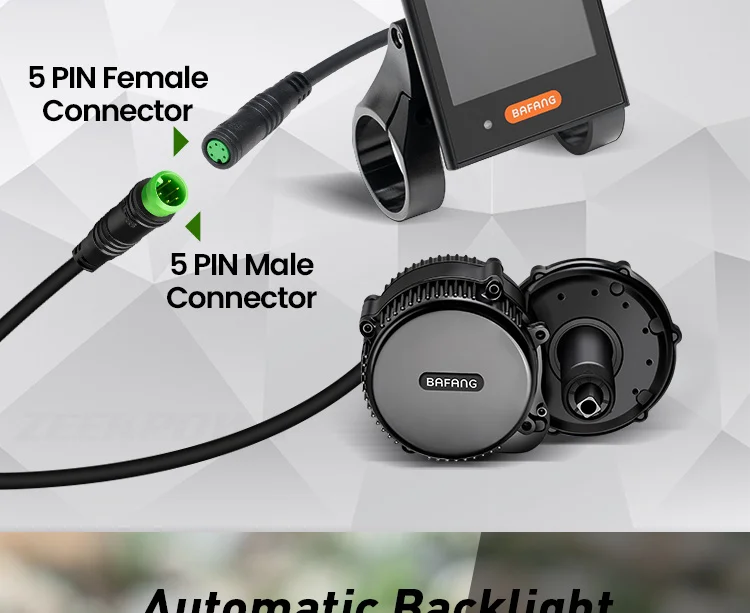

• This display is designed to work exclusively with BAFANG mid-drive motors, including BBS01, BBS02, and BBSHD. It is not compatible with other motor brands or types. Please carefully refer to the second product image for connection guidance.

Display Highlights

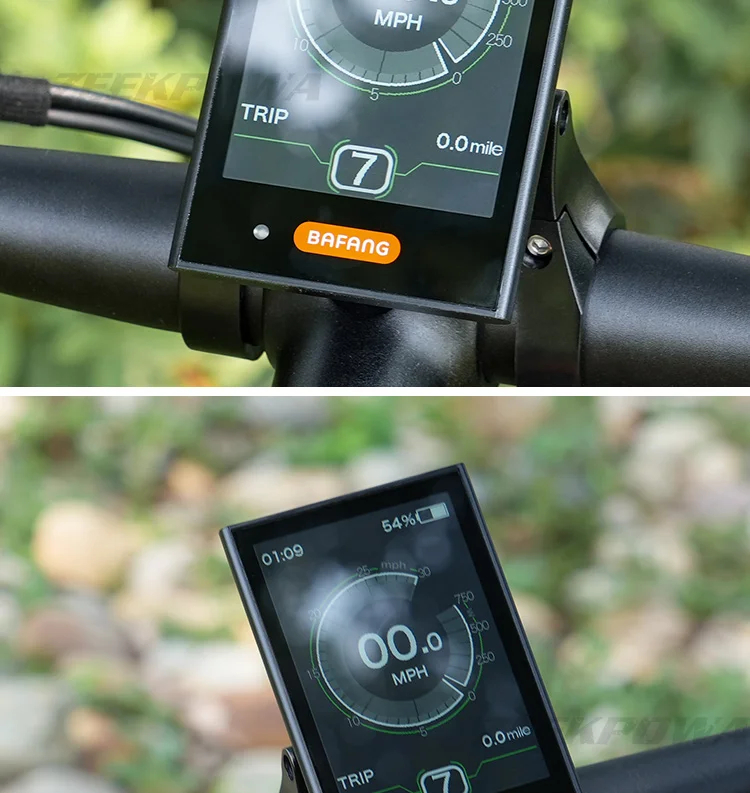

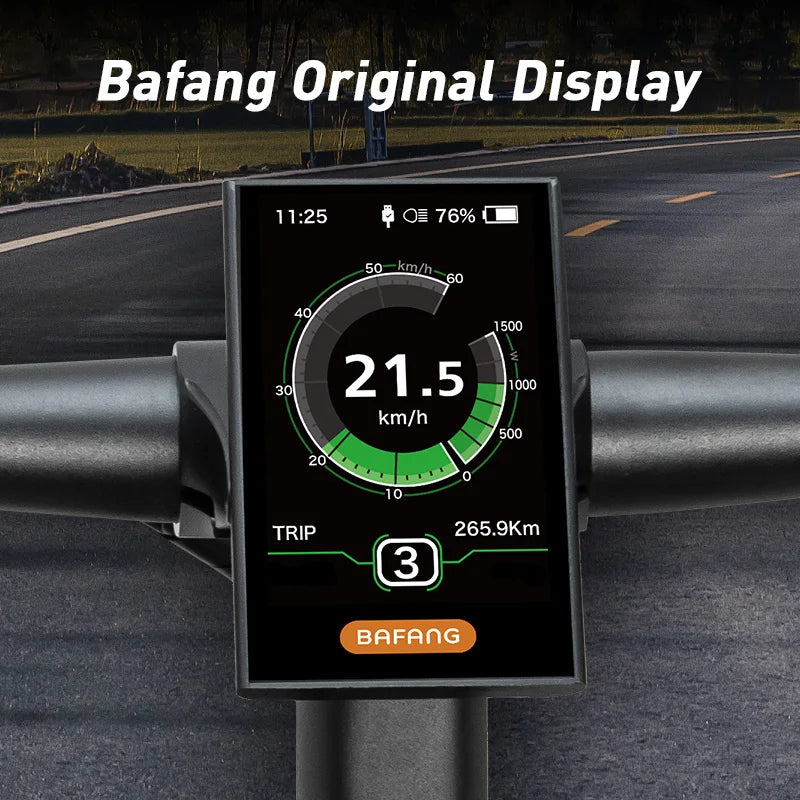

• 3.5-inch HD LCD Screen: Offers clear and easy-to-read data during rides

• Automatic Backlight Adjustment: The display brightness adapts automatically to ambient light conditions for optimal visibility

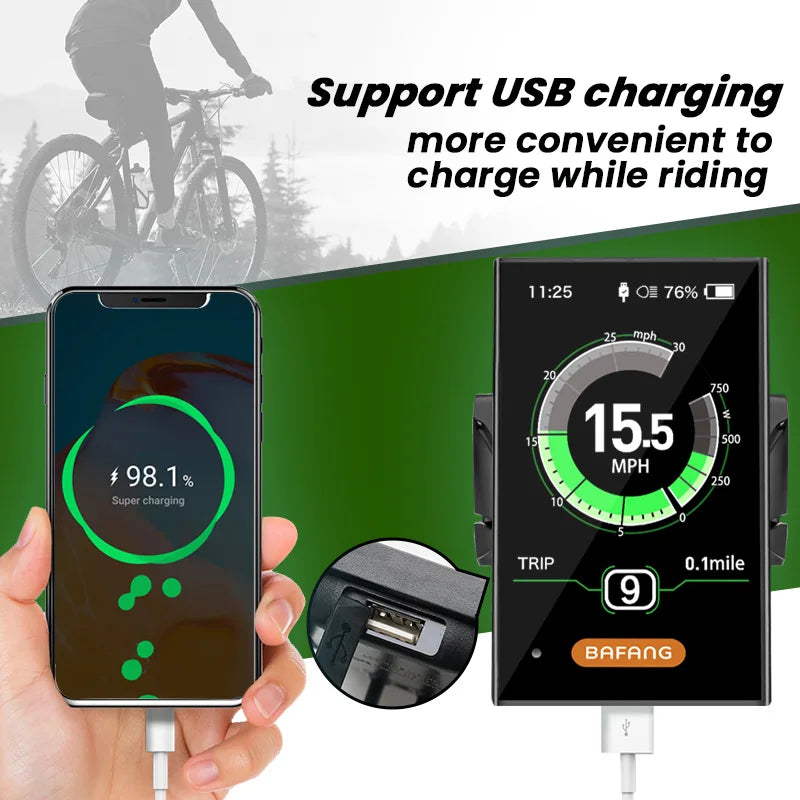

• USB Charging Function: Keeps your phone charged on the go with a convenient USB output

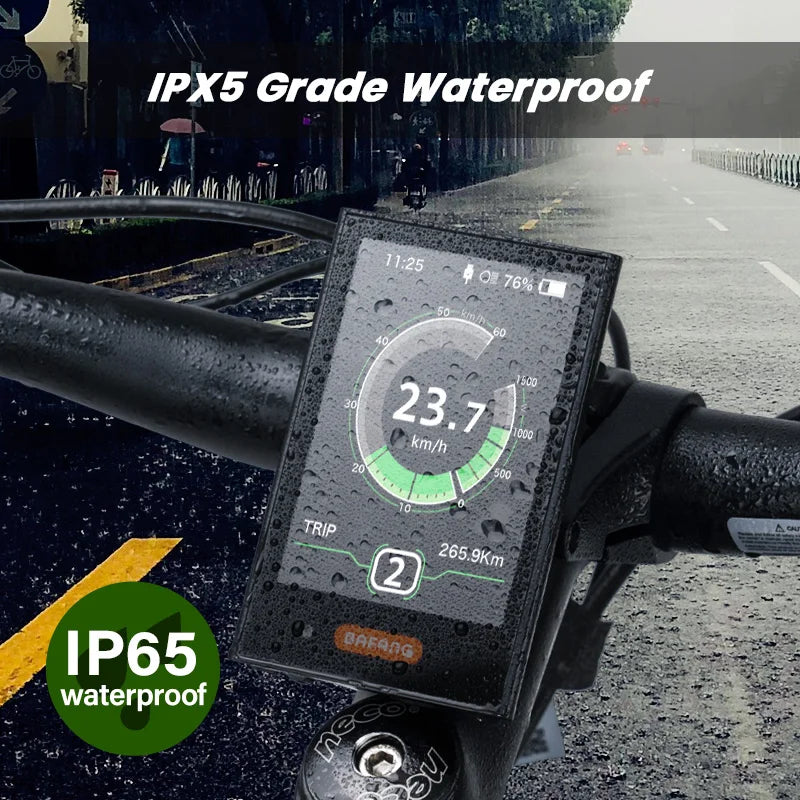

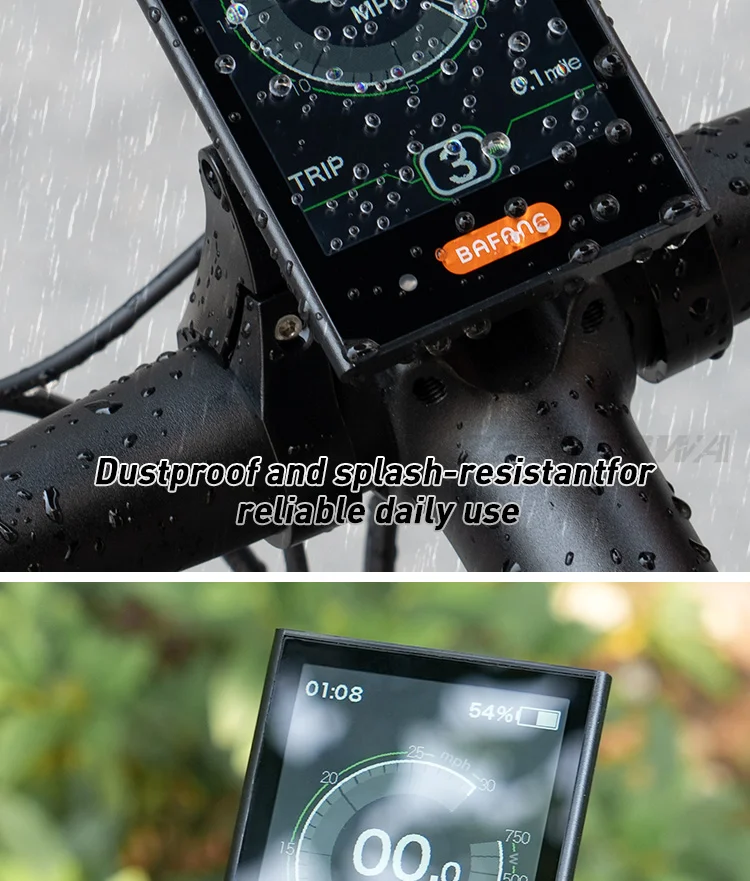

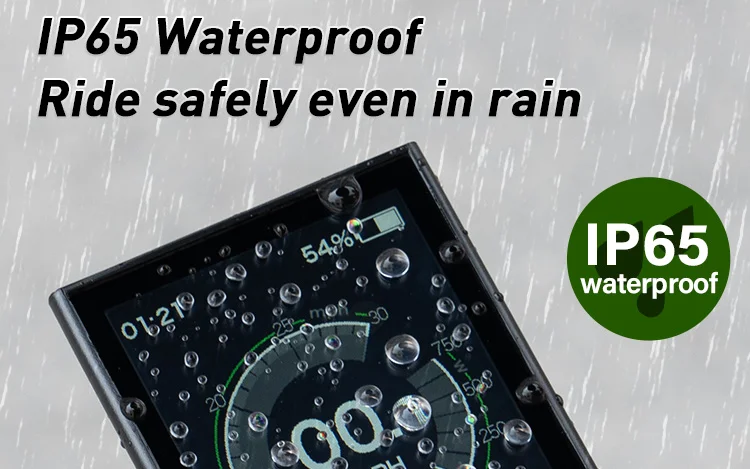

• IPX5 Waterproof Rating: Ensures reliable performance in light to moderate rain, providing all-weather riding enjoyment

Installation Instructions

• Mount the display and keypad securely to the handlebar. Ensure the system is powered off before connecting to the motor controller.
